Compare metal-roof attachment, appearance and project requirements, with real Barnes roof layouts and questions to ask about the proposed system.
Start a metal-roof comparison with the attachment method and the exact panel system. Standing seam generally conceals the main panel fasteners. Exposed-fastener roofing attaches through the face of the panel. Those choices affect the appearance and the details that belong in the proposal.
At Barnes N’ Roofs, the conversation also starts with your building. A roof around a recessed entry, a roof with a balcony and a roof interrupted by a chimney present different layouts. Our completed projects below show those differences. They help explain what to ask without treating a photograph as a complete installation specification.
Where the fasteners go
McElroy Metal describes exposed-fastener systems as panels secured through their faces, with caps and washers sealing the screws. Standing seam uses concealed clips or a fastening flange, depending on the system. Its comparison explains that temperature-related panel movement can enlarge holes around exposed fasteners, particularly on longer panels, while appropriate concealed attachment allows movement.
Ask the contractor to identify the proposed attachment method by product name. “Metal roof” leaves too much unspecified. A sample panel and the matching product information can make the distinction clearer than a color chart alone.
What you will see from the ground
Exposed-fastener roofs have visible fastener lines. Standing seam emphasizes the raised seams between panels. McElroy generally describes exposed-fastener installation as the less expensive approach, but that is a broad system comparison, not a price for your building.
Look at a roof photograph from more than one angle. The front elevation shows the relationship to brick, stone, siding and trim. An overhead view shows the direction of the panel runs and the roof intersections. Neither view tells you everything about what is underneath.
Three Barnes layouts worth comparing

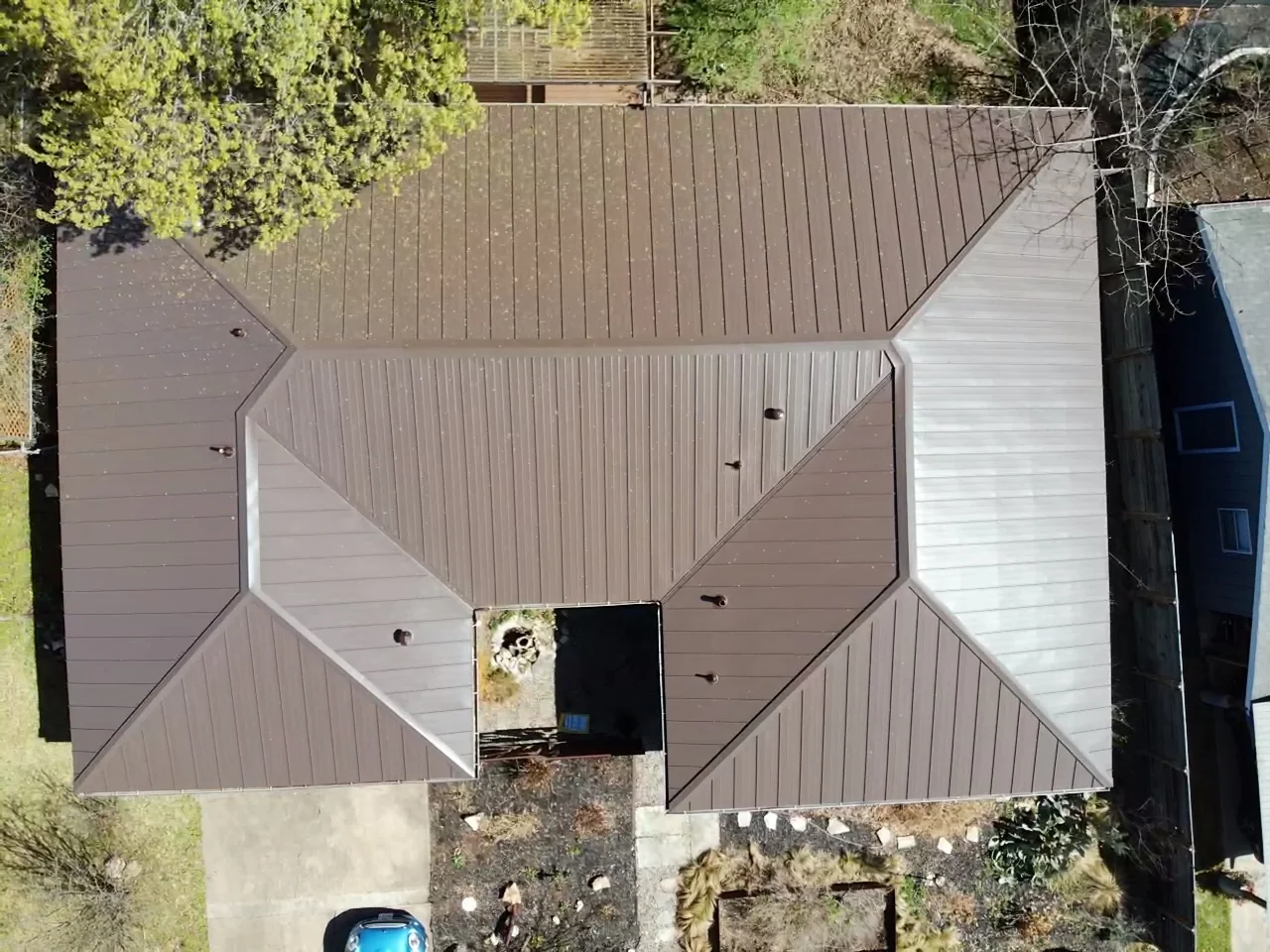

Our Austin recessed-entry project changed an earlier brown shingle roof to brown standing seam. The finished views show panels following the hips and valleys around the entry. This is a useful example when you want a new material while keeping a warm roof color.
In Standing Seam Above the Balcony, the metal roofing sits above a prominent gabled balcony. Compare the roof outline with the first project, then consider how your own porches and projecting roof areas should appear in the estimate.
The black standing-seam project shows intersecting hips and valleys around a red-brick chimney. An earlier shingle detail provides a view of the same chimney before the material change. The gallery documents the visible roof; it does not establish a specific concealed clip, panel gauge or warranty.
Match the system to the roof
Standing seam includes different profiles and seam types. McElroy's system information distinguishes snap-together and mechanically seamed products, with requirements that vary by profile and application. There is no single minimum roof slope that can be assigned to every product carrying the standing-seam label.
When reviewing a proposal, ask which manufacturer document applies to the selected panel and how the actual roof slope was checked. If your property combines steep and low-slope sections, have each section identified. A main-roof photograph should not stand in for the specification of an adjoining low-slope area.
Questions for your metal-roof estimate
What is the manufacturer and exact panel profile?
What metal thickness, finish and color are included?
Which existing roof layers will be removed, and how will the substrate be assessed?
How are hips, valleys, walls, chimneys and other openings included in the scope?
What attachment and underlayment requirements apply to this system?
What maintenance instructions and written coverage will be supplied?
Keep the answers with your estimate. If two proposals use different panel systems or exclude different roof details, ask for those differences to be explained before comparing the totals.
Plan the next step
Bring photographs, plans and any finish samples you are considering. Tell us whether the building is a home, an occupied commercial property or another type of project, and whether access or scheduling needs special attention.
Explore our standing seam roofing service, see more Barnes projects, or request a metal-roof estimate. We work across Central Texas, including Austin and San Antonio, from our New Braunfels base.
Sources and project evidence
Prepared by Barnes N’ Roofs. Manufacturer guidance checked September 7, 2026. The project links show Barnes' documented work. The references explain general system differences and do not certify the specifications of an individual Barnes project.
