See insulated roof-panel examples and compare RidgeLine, HighLine, insulation, condensation details and project fit.
An insulated metal panel combines an exterior metal skin, a factory-bonded insulation core and an interior metal skin. It is a complete panel assembly, not simply a metal roof installed above separate attic insulation. Start by deciding whether you need a roof panel, wall panel or both.
Inside the panel

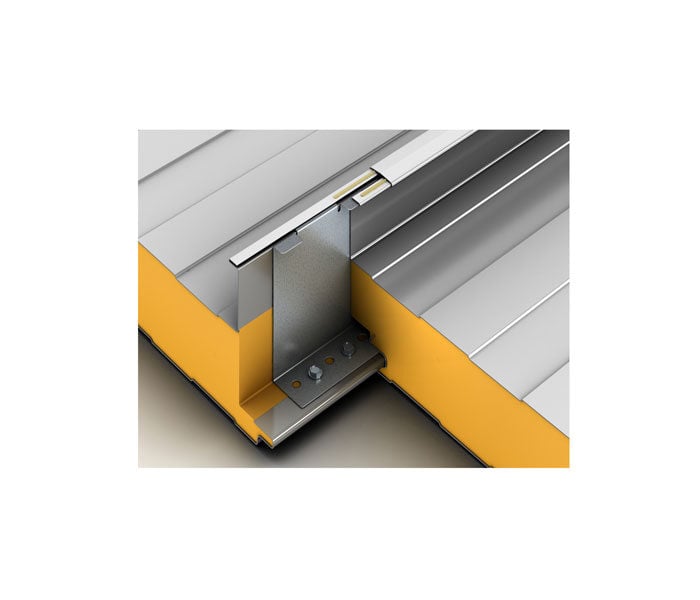

McElroy sample showing the insulated core and metal skins of a RidgeLine panel.
| Option | Connection | What to compare |
|---|---|---|
| RidgeLine | Symmetrical mechanically seamed roof panel | Standing seam appearance and roof-system details |
| HighLine | Through-fastened insulated roof panel | Ribbed profile and exposed-fastener maintenance |
| Single-skin metal plus separate insulation | Separate roof and insulation layers | Different assembly, labor and condensation details |
| Insulated wall panel | Product-specific wall joint | Not a substitute for an approved roof panel |
HighLine in practice

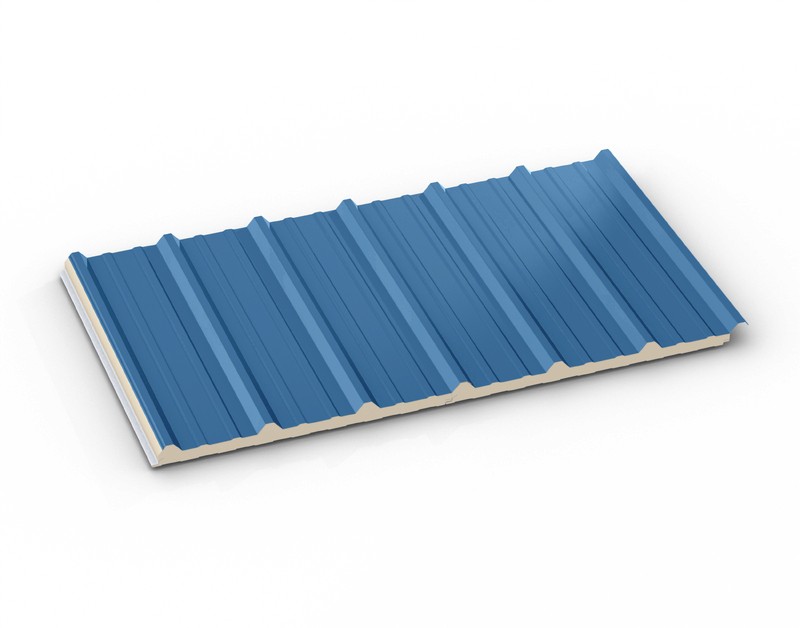

McElroy illustration of the HighLine insulated roof panel.

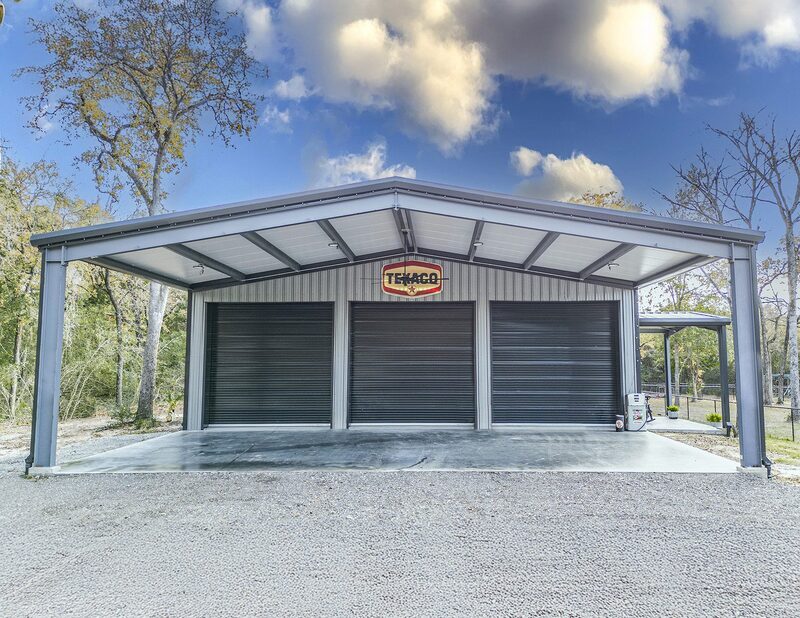

McElroy manufacturer project showing HighLine insulated panels.
Insulation: compare the complete assembly
Ask for the selected panel’s current thermal data, thickness and test conditions. Center-of-panel R-value is not the same as whole-assembly performance. Joints, fasteners and framing affect the finished building.
| Item | Ask for |
|---|---|
| Panel identity | Manufacturer, profile, core type and thickness |
| Thermal performance | Published R-value or U-factor and test conditions |
| Structural design | Span, support, attachment and project loads |
| Water and air control | Joint seals, transitions and penetration details |
| Condensation control | A plan matched to indoor humidity and building use |
| Fire requirements | The required tested assembly and code approval |
| Finish and warranty | Exterior and interior finishes; exact coverage |
Where they may make sense
| Building | Planning priority |
|---|---|
| Conditioned shop or warehouse | Thermal continuity and air sealing |
| Barndominium | Residential code, interior finish and detailing |
| Cold-storage space | Specialized vapor, joint and temperature design |
| Unconditioned storage | Compare the insulation benefit against added cost |
An insulated core alone does not prevent condensation. The designer must coordinate joints, vapor control, air leakage and the intended indoor conditions. Do not apply a vented-attic rule to an insulated-panel assembly without checking its design.
Green Span current technical resources
Green Span installation manuals
